Raumfahrt - JAXA´s Asteroid Explorer Hayabusa-2 auf Asteroid 1999 JU3 gelandet-Update-16

11.07.2019

hayabusa2-landing

The Hayabusa 2 space probe on July 10 started its descent on a delicate mission to collect the world’s first underground samples from an asteroid, the Japan Aerospace Exploration Agency (JAXA) said.

The probe is slowly approaching the asteroid Ryugu and is expected to land shortly after 10 a.m. on July 11, if everything goes smoothly.

Once on the surface, Hayabusa 2 will fire a bullet into the surface near an artificial crater and collect the flying sand and stones, according to JAXA’s plan.

After several seconds, it will leave the asteroid.

“Finally, the time has come,” JAXA project manager Yuichi Tsuda told his team members. “(The landing mission) is a very important milestone, but let’s do it in a calm manner, like we have always done.

“Let’s allow Hayabusa 2 to touch Ryugu tomorrow one more time.”

This mission has been fraught with potential problems, but so far, Hayabusa 2 has performed remarkably well since it traveled to the asteroid, about 340 million kilometers from Earth.

It first touched down on Ryugu in February, fired a bullet into the asteroid, and collected surface samples from the impact.

In April, the space probe dropped an explosive box that propelled a copper sphere into Ryugu, creating the crater.

Around 11 a.m. on July 10, Hayabusa 2 started descending from its home position at an altitude of 20 kilometers toward the artificial crater.

The expected landing site is apparently covered with a 1-centimeter-thick layer of underground sand spread by the impact of the copper sphere. The probe is expected to collect that sand after it rises from the bullet’s impact.

When the probe reaches an altitude of 500 meters, likely on the morning of July 11, JAXA will decide if the conditions are right to continue with the landing.

If the plan is given the green light, Hayabusa 2 will make its own judgments based on information from its altimeter and images from its cameras.

The project team, however, has concerns. The flying sand caused by the bullet fired in February created poor visibility, and the probe’s cameras could not capture clear images of the situation on the asteroid.

If the space probe loses sight of the landing spot or other problems occur, the landing mission could be called off.

In that case, JAXA will discuss whether another attempt should be made on July 22 or later.

Quelle: The Asahi Shimbun

+++

Japan's asteroid probe Hayabusa2 set for final touchdown

-w850-4

Japan's Hayabusa2 probe began descending on Wednesday for its final touchdown on a distant asteroid, hoping to collect samples that could shed light on the evolution of the solar system.

"At 9:58, we made a 'Go' decision for the Hayabusa2 probe's second touchdown," the Japan Aerospace Exploration Agency (JAXA) said in a statement.

"Currently the probe is working normally."

The probe is expected to touch down Thursday on the Ryugu asteroid, some 300 million kilometres (185 million miles) from Earth.

If successful, it will be the second time it has landed on the desolate asteroid as part of a complex mission that has also involved sending rovers and robots down onto it.

The mission hopes to collect pristine materials from beneath the surface of the asteroid that could provide insights into what the solar system was like at its birth, some 4.6 billion years ago.

To get at those crucial materials, in April an "impactor" was fired from Hayabusa2 towards Ryugu in a risky process that created a crater on the asteroid's surface and stirred up material that had not previously been exposed to the atmosphere.

"This is the second touchdown, but doing a touchdown is a challenge whether it's the first or the second," Yuichi Tsuda, Hayabusa2 project manager, told reporters ahead of the mission.

"The whole team will do our best so that we'll be able to complete the operation," he said.

  • 'Extremely attractive materials' -

Hayabusa2's first touchdown was in February, when it landed briefly on Ryugu and fired a bullet into the surface to puff up dust for collection, before blasting back to its holding position.

The second touchdown requires special preparations because any problems could mean the probe loses the precious materials already gathered during its first landing.

A photo of the crater taken by Hayabusa2's camera shows that parts of the asteroid's surface are covered with materials that are "obviously different" from the rest of the surface, mission manager Makoto Yoshikawa told reporters.

The probe is expected to make a brief touchdown on an area some 20 metres away from the centre of the crater to collect the unidentified materials believed to be "ejecta" from the blast.

"It would be safe to say that extremely attractive materials are near the crater," Tsuda said.

The touchdown will be the last major part of Hayabusa2's mission, and when the probe returns to Earth next year scientists hope to learn more about the history of the solar system and even the origin of life from its samples.

"I'm really looking forward to analysing these materials," Yoshikawa said.

At about the size of a large refrigerator and equipped with solar panels to keep it powered, Hayabusa2 is the successor to JAXA's first asteroid explorer, Hayabusa -- Japanese for falcon.

That probe returned with dust samples from a smaller, potato-shaped asteroid in 2010, despite various setbacks during its epic seven-year odyssey and was hailed as a scientific triumph.

Hayabusa2 observes the surface of Ryugu with its camera and sensing equipment but has also dispatched two tiny MINERVA-II rover robots as well as the French-German robot MASCOT to help surface observation.

Its photos of Ryugu, which means "Dragon Palace" in Japanese and refers to a castle at the bottom of the ocean in an ancient Japanese tale, show the asteroid has a rough surface full of boulders.

Launched in December 2014, the Hayabusa2 mission has a price tag of around 30 billion yen ($270 million) and is scheduled to return to Earth with its samples in 2020.

But its mission has already made history, including with the creation of the crater on Ryugu's surface.

In 2005, NASA's Deep Impact project succeeded in creating an artificial crater on a comet but only for observation purposes.

Quelle: Japan Today

+++

JAXA releases Hayabusa2 landing images

ryugu-jaxa-1

ryugu-jaxa-aa

JAXA releases Hayabusa2 landing images

Japan's space agency, JAXA, has released three photos taken by the space probe Hayabusa2 during its landing on the asteroid Ryugu in its unprecedented mission to collect underground samples.

One of the photos released on Thursday, taken 4 seconds before touchdown, is a close-up of the asteroid's rocky surface.

The second photo was taken at the moment of touchdown, as a cylindrical sample collector on the probe reached the surface. The image is partially blurred, apparently due to a cloud of sand dust stirred up on impact.

The third photo was taken 4 seconds later, immediately after the sample collector fired a bullet into the surface to collect rock samples. The photo shows countless shattered rocks flying around.

Professor Seiichiro Watanabe of Nagoya University is a senior member of the JAXA project team.

He said the images indicate that a sand deposit was created on the surface after Hayabusa2 formed a crater on Ryugu in April.

Watanabe said this means the collector very likely gathered samples from inside the asteroid.

Quelle: NHK

+++

Japan's Hayabusa2 probe lands on asteroid Ryugu for 2nd time

ohne-titel-1

TOKYO -- The Japanese space probe Hayabusa2 successfully touched down on the asteroid Ryugu for the second time on July 11, the Japan Aerospace Exploration Agency (JAXA) announced.



JAXA said on the morning of July 11 it had confirmed the space probe started ascending following its descent toward the asteroid that began the previous day. If it successfully collected materials from below the surface of an artificial crater that it made on the asteroid, it would mark the first time in history for a space agency to accomplish such a feat.

The touchdown brought to completion a key mission for the space probe that reached Ryugu, currently located some 250 million kilometers from Earth, on June 27 last year. The probe is scheduled to return to Earth at the end of 2020 after leaving the asteroid sometime between November and December 2019.

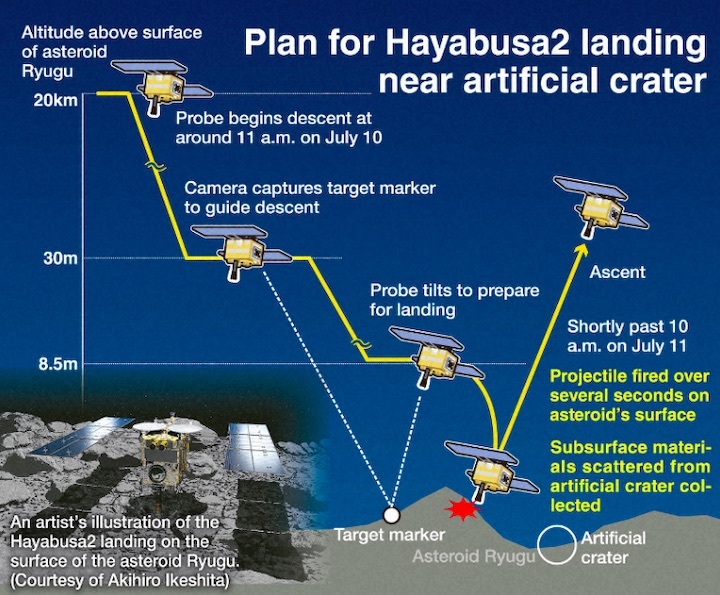

Hayabusa2 began to descend toward Ryugu from an altitude of 20 kilometers on July 10, and JAXA judged the following morning that the touchdown was successful.

When it reached an altitude of 30 meters above the surface of the asteroid, Hayabusa2 switched to full autonomous function, using a camera to track a target marker that it had dropped earlier on the surface to guide its descent. The probe is believed to have aimed to land 2.6 meters away from the target marker.

Workers at the JAXA Institute of Space and Astronautical Science in Chuo Ward in the city of Sagamihara in the eastern Japan prefecture of Kanagawa observed changes in radio waves sent from the probe during its descent. When they confirmed that it was rising again, they erupted in applause with smiles on their faces.

Under the touchdown operation plans, the probe was supposed to rise from Ryugu immediately after a cylinder-shaped protrusion on the bottom of the probe came into contact with the surface.

When Hayabusa2 first successfully touched down on Ryugu in February this year, particles that flew up clouded the camera and an altimeter, decreasing their sensitivity. Because of this, the JAXA team lowered the altitude at which full autonomous function would begin from 45 meters during the first touchdown to 30 meters this time, making it possible to find the target marker with a higher degree of certainty and measure its altitude. Hayabusa's field of view becomes narrower when it switches to autonomous function.

Quelle: The Mainichi

----

Update: 12.07.2019

.

Probe lands on asteroid; JAXA awaits data on sample collection

hayabusa2-landing-h

A press room monitor shows applause breaking out in the control room of the Sagamihara complex of the Japan Aerospace Exploration Agency on July 11 after confirmation was received that the Hayabusa 2 space probe made a second landing on the asteroid Ryugu. (Ryo Ikeda)

The Hayabusa 2 space probe has landed on the asteroid Ryugu, but scientists were still waiting to see if it collected underground samples that could provide clues on how the solar system was created.

Officials of the Japan Aerospace Exploration Agency (JAXA) announced around 11 a.m. on July 11 that they had received data confirming Hayabusa 2 made its second landing on the asteroid about 240 million kilometers from Earth.

After it descended to about 300 meters above Ryugu, the probe was no longer under the control of JAXA scientists. It made the final descent based on information gathered from equipment on-board.

JAXA officials said they had also observed signals indicating the probe had risen from the surface as planned. But final confirmation will take more time because data sent by Hayabusa 2 reaches Earth in about 13 and a half minutes.

The probe first landed on Ryugu in February and is believed to have collect samples of surface sand and rocks. In April, Hayabusa 2 dropped an explosive on the asteroid to create an artificial crater.

The second landing near that crater is intended to collect what JAXA hopes are the world’s first underground samples from an asteroid. JAXA scientists had also confirmed that the probe fired a bullet into the surface to kick up sand and rocks for collection by the probe.

“The probe worked so perfectly that it felt like a rehearsal,” Takashi Kubota, a JAXA senior project member, said about the day's developments.

If the second collection is successful, Hayabusa 2 will have far surpassed its predecessor, but it still faces the difficult task of returning to Earth in as intact a condition as possible.

Some within JAXA had suggested aborting the second landing and having the probe return to Earth with the samples collected from the first landing.

There were concerns about the risk of losing the surface samples if the probe was damaged on the second landing, making its return to Earth more difficult.

Hayabusa 1 was damaged when it landed on another asteroid, the Itokawa, in 2005.

But JAXA scientists learned from that first mission and conducted numerous simulations using the successor probe. They were confident that a second landing could be pulled off.

The second landing was about the last chance for Hayabusa 2 because surface temperatures on Ryugu were increasing as the asteroid’s orbit was bringing it closer to the sun.

Plans call for Hayabusa 2 to leave Ryugu by the end of this year and return to Earth toward the end of 2020.

Ryugu has a diameter of about 900 meters and is believed to contain more carbon than the Itokawa asteroid, leaving open the possibility that Ryugu holds organic substances.

Most asteroids have an orbit that is outside that of Mars. But Ryugu has a rare orbit that periodically brings it closer to Earth, making it easier to observe.

At the same time, it is classified as a potentially dangerous asteroid because of the possibility that it could collide with Earth.

Quelle: The Asahi Shimbun

+++

JAXA:

hayabusa2-ha-1

Approach to the 2nd touchdown –Part 1:
observations near the touchdown point–

Our first touchdown took place this year on February 22. Then as a new challenge for the Hayabusa2 Project, we succeeded in creating an artificial crater using the Small Carry-on Impactor (SCI) on April 5. The last big operation left at asteroid Ryugu is the collection of subsurface material exposed with the creation of the artificial crater. In order to collect this material, we need a second touchdown for which the project has been steadily preparing. At this point, it has not yet been decided whether or not to go ahead with a second touchdown, but here we will introduce our preparations in the “Approach to the second touchdown”.

After the operation to form the artificial crater, the spacecraft descended a total of four times above or near the crater site. These descent operations allowed us to obtain detailed data of the region near the artificial crater. In addition, we succeeded in dropping a target marker in the area close to the artificial crater on May 30. Combined, these operations mean that the situation around the artificial crater is now well understood.

Figure 1 shows an image taken during the low altitude descent observation operation (PPTD-TM1B) conducted from June 11 – 13. The target marker was captured in the image and you can get a handle on the state of the surface.

pub-onc-pptdtm1b-20190613-st-5m

"JAXA, Chiba Institute of Technology & collaborators".

  • Figure 1: Image taken on June 13, 2019 during the operation PPTD-TM1B. This is a composite of 28 images taken at 7 second intervals starting from 10:58 JST (upper left) to 11:01 (lower right) using the Optical Navigation Camera – Telescopic (ONC-T). The image altitude is about 52m at the start and 108m at the end. The white point in the upper-left center is the target marker. You can see that detailed images have been acquired continuously from the target marker to the edge of the artificial crater, located in the lower-right of the image. (Image credit ※: JAXA, Chiba Institute of Technology, University of Tokyo, Kochi University, Rikkyo University, Nagoya University, Meiji University, University of Aizu, AIST.)

As you can see in Figure 1, asteroid Ryugu is covered with boulders. If we go for a second touchdown, we need to aim for a point close to the target marker which has no obstacles. The project is currently examining this area in detail.



+++

Approach to the 2nd touchdown –Part 2:
details of the touchdown point–

n ‘Part 1’ of this article on June 19, we looked at images from observations of the asteroid surface near the planned site for the second touchdown to collect a sample. In this article, we examine the details of the touchdown site.

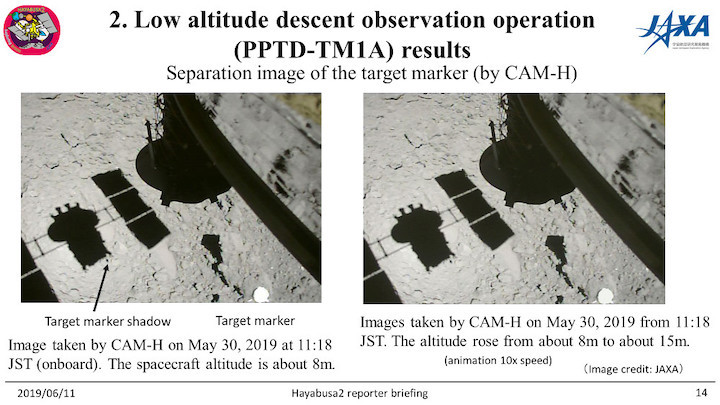

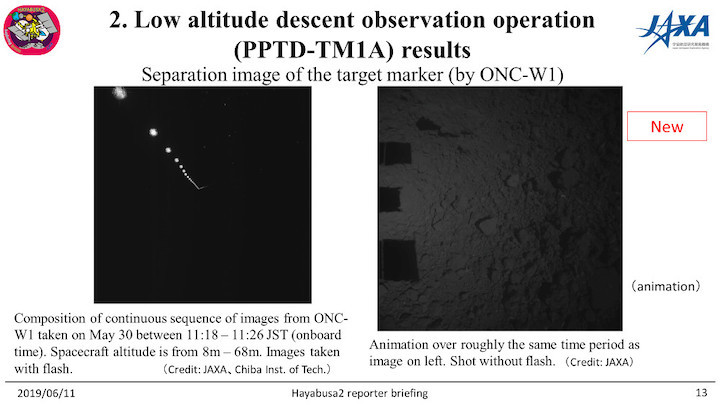

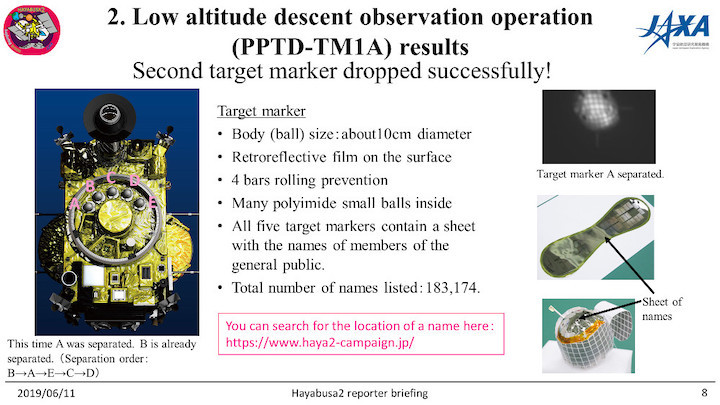

First, let’s recall the separation of the target marker. On May 30, 2019, one of Hayabusa2’s target markers was successfully dropped during the PPTD-TM1A operation (figures 1- 6 from our press briefing in June ).

fig1es

fig2es

fig4es

fig6es

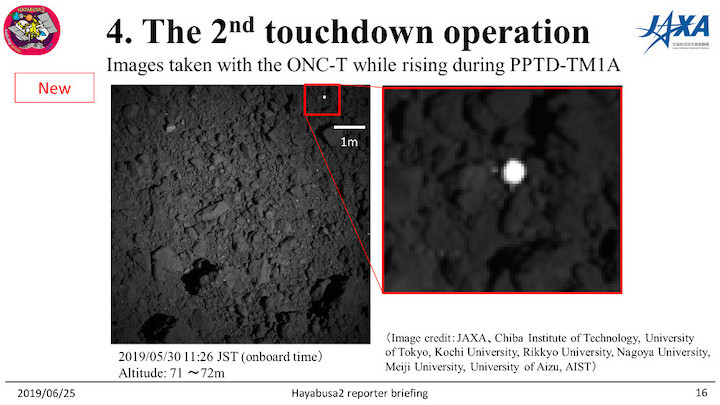

  • Figure 6: Image of the target marker on the surface of Ryugu after landing (2019/6/25 press briefing material). Taken on May 30, 2019 (credit ※1: JAXA, Chiba Institute of Technology, University of Tokyo, Kochi University, Rikkyo University, Nagoya University, Meiji University, University of Aizu, AIST).

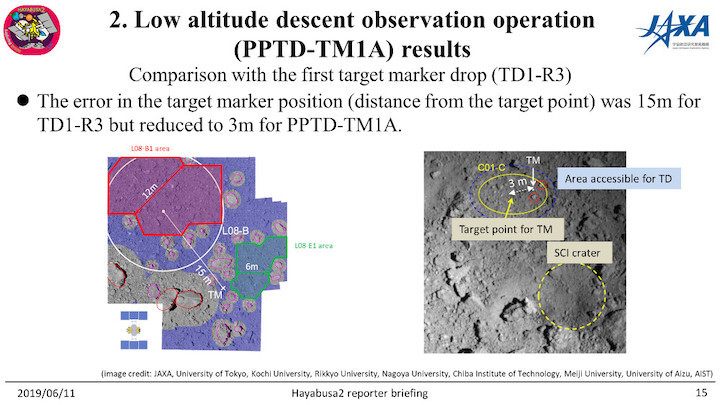

Figure 7 shows a comparison with the first target marker drop (TD1-R3 operation, 2018/10/25). In TD1-R3, the position error (distance from the target drop point) was 15m. This was reduced to 3m for the second target marker dropped during PPTD-TM1A.

fig7es

  • Figure 7: Comparison between the two target marker drop operations (2019/6/11 press briefing material). (Credit ※2: JAXA, University of Tokyo, Kochi University, Rikkyo University, Nagoya University, Chiba Institute of Technology, Meiji University, University of Aizu, AIST).

Once the target marker was successfully dropped, the project team proceeded with a detailed examination of the potential touchdown points close to where the target marker now lay.

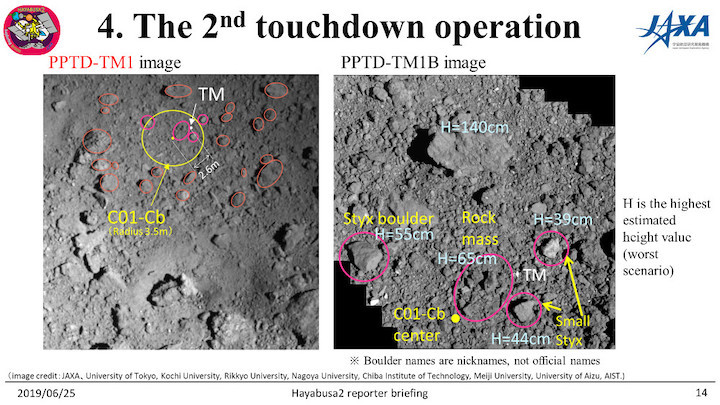

In Figure 8, we can see area C01-Cb, which is a region modified from the earlier identified region, C01-C.

fig8es

  • Figure 8: The area C01-Cb where touchdown is planned (from the 2019.6.25 press briefing material). [Left] The area surrounding C01-Cb, captured by the Optical Navigation Camera – Telescopic (ONC-T), taken on May 16 (before the target marker was dropped). [Right] A mosaic of multiple images taken on June 13 with the ONC-T. (Credit ※2: JAXA, University of Tokyo. Kochi University, Rikkyo University, Nagoya University, Chiba Institute of Technology, Meiji University, University of Aizu, AIST.)

The left-hand image in Figure 8 shows the area surrounding C01-Cb, which includes the artificial crater generated with the SCI. The background to this image is the same as the right-hand image in Figure 6, but differently annotated. The red ovals indicate the location of large rocks that pose a danger to the spacecraft. On the right of Figure 8, you can see a high resolution image close to where the target marker landed. The rocks indicated by the pink ovals were examined particularly carefully by the team for potential danger to the spacecraft, and the numbers alongside these in light blue are the estimated height of the rock. These interesting rocks have been given names, although these are just nicknames used for this study and not official names approved by the IAU. The names “Styx” and “small Styx” come from the name of the River Styx; the river that forms the boundary between life and death in Greek mythology. The “rock mass” is, as the name suggests, a place where several rocks have piled up.

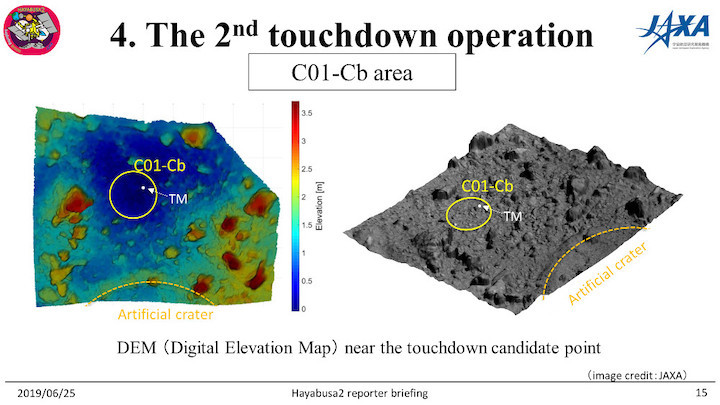

In addition to these high resolution images, digital topographic maps of the area were created using the observational data obtained during the previous descent observation operations. Figure 9 shows this digital topographic map.

fig9es

  • Figure 9: Digital topographic map near the C01-Cb area (from the 2019/6/25 press briefing materials). (Credit ※:JAXA)

The C01-Cb region was selected for the site of the second touchdown on the basis of this detailed study. Details on the decision for the touchdown itself will be covered in another article.

The second touchdown is planned for July 11.
Thank you for all your support!



Hayabusa2 Project

Quelle: JAXA
